HSM 90/100

Home ] HSM 65/70/80 ] [ HSM 90/100 ]



The performance, equipment and dimensions of the comfort models of the home office class make them ideal for use in small offices or directly at the desk. All paper documents accruing in the office or at home are reliably shredded at security levels 2 and 3 and are rendered unreadable.





HSM 90
Handling:
• Automatic start/stop control
• Standby operation without energy consumption
• Loading width 225 mm (>DIN A4)
• Simple handling
• Compact dimensions - suitable for any office desk
• Rocker switch for On/Off and reversing
• Integrated container can also be used as paper bin - opening for throwing in normal paperwork
• 24 litres capacity

Technical advantages:

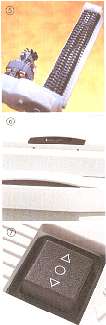

• Hardened full-steel cutting rollers, unaffected by paper clips and staples
• Powerful drive for high performance - motor with thermal protection
• Low noise operation
• Enclosed, proven toothed gearing prevents soiling and wear and thus extends the service life
• Available as strip or particle cut version at various security levels



HSM 100
Handling:
• Automatic start/stop control
• Standby operation without energy consumption
• Automatic stop when container is full
• Loading width 225 mm (>D!N A4)
• Simple handling
• Compact dimensions - suitable for any office desk
• Rocker switch for On/Off and reversing
• integrated container can be tilted and used as paper bin for normal paperwork
• 20 litres capacity

Technical advantages:
• Hardened full-steel cutting rollers, unaffected by paper clips and staples
• Powerful drive for high performance - motor with thermal protection
• Low noise operation
• Enclosed, proven toothed gearing prevents soiling and wear and thus extends the service life
• Enclosed housing protects against paper dust
• Available as strip or particle cut version at various security levels











  HSM 90   HSM 100
Cutting style

Strip cut

Particle cut

Strip cut

Particle cut

Cutting size

5.8/ 3.9 mm

3.5 x 25 mm

5.8/3.9/ 1.9 mm

3.5 x 25 mm

Data Security level din 32757-1

2/2

3

2/2/3

3

Cutting capacity*

14-16/ 10-12 sheets

5-6 sheets

14-16/ 10-12 / 7-8 sheets

5-6 sheets

Cutting speed

60 mm/s

60 mm/s

60 mm/s

60 mm/s

Loading width

225 mm

225 mm

225 mm

225 mm

Power**

130 W

130 W

130 W

130 W

Voltage

230V/50Hz

230V/50 Hz

230V/50 Hz

230V/50 Hz

Dimensions in W x D x H in mm

326 x 240 x 423

326 x 240 x 423

365 x 245 x 460

365 x 245 x 460

Weight

4 kg

4.5 kg

6kg

6.5kg

Capacity

241

241

201

201

*per run DIN A4, 70g/m' ** for max. number of sheets

Technical and optical modifications reserved.
