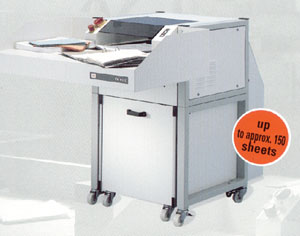

The HSM FA 400 is the model suitable for large-scale professional paper shredding. With its cutting capacity of up to 150 sheets and security levels 1 to 3, the HSM FA 400 is the perfect security partner for every large EDP department, archive or central paper shredder function.


HSM FA400       • Shredding of customer and credit cards as well as CD ROMs and floppy disks
Handling: • Movable on rollers which can be locked
• Membrane keyboard for continuous operation and reversing Technical advantages:
• Standby operation with lamp indication • Hardened full-steel cutting rollers, unaffected by paper clips and staples
• Automatic stop with lamp indication when collecting bag is full or collecting carriage has been pulled out • Powerful, specially adjusted drive for high performance, also for longer periods of use and large volumes - motor with thermal protection
• Automatic reversing when paper jam occurs • Low noise operation and smooth running
• Loading width 428 mm  • Modern electronic control
• Also suitable for large volumes and larger formats • Proven, very robust geared motor with chain drive for high throughput
• Practical stacking area for easy loading • Available as strip or particle cut version at various security levels
• Material feeding via conveyor belt - for high throughput • Combination with baling press HSM 40 VL possible
• Convenient, sturdy collecting carriage with durable reusable collecting bag
• 340 litres capacity



HSM FA400
Cutting Style Strip Cut Particle Cut

Cutting size

3.8/5.8/11.8 mm

3.8 x 50 mm

Data Security level Din 32757-1

2/2/1

3

Cutting capacity*

approx. 90 / 105 / 150 sheets

approx. 100 sheets

Cutting speed

347 mm/s

354 mm/s

Loading width

428 mm

428mm

Power

4.0 kW

4.0 kW

Voltage

400 V/50 Hz

400 V/ 50Hz

Dimensions in W x D x H in mm

with carriage: 1090 x 1700 x 1220

with carriage: 1090 x 1700 x 1220

Weight

360kg

360kg

Capacity of cut material container

340 L

340 L

* per run DIN A4,70g/m^2

Technical and optical modifications reserved.
