| With their elegance, cutting capacity and security
levels 2 up to 5,thelow level modelsof the office class fulfil professional
demands. In addition to paper,theHSM models 104.2and 105.2 also shred
customer and credit cards, the particle cut version 3.9x 30 mm of
HSM 105.2 even shreds thermo transfer foils of fax
machines! |
 |
 |

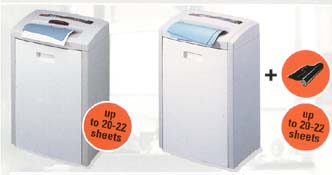

HSM 104.2 and HSM 105.2
Handling:
• Automatic start/stop control via rocker
switch (HSM 104.2)
• Standby operation without energy
consumption (HSM 104.2)
• Automatic start/stop control especially
comfortable via photo-cell (HSM 105.2)
• Standby operation with lamp indication
(HSM 105.2)
• Automatic stop when container is full
• Automatic stop when container has been
openedor removed
• Loading width 240 mm (>DlN A4)
• Simple handling
• Compact dimensions - suitable for any
office desk
• Rocker switch for On/Off and reversing
• Integrated container can be tilted
and used as
paper bin for normal paperwork
• 29 litres capacity
• Shredding of customer and credit cards
(at security levels 2 and 3)
|
|
Technical advantages:

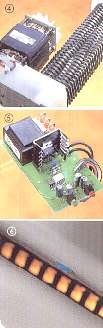

• Hardened full-steel cutting rollers,
unaffected by paper clips and staples
• Powerful, specially adjusted drive for high performance, also for longer periods of use -motor with thermal protection
• Low noise operation
• Enclosed, proven toothed gearing
prevents soiling and wear and thus
extends the service life
• Enclosed housing protects against
paper dust
• Available as strip or particle cut
version at various security levels; HSM 105.2 also at security level 5!
|
| |
HSM 104.2 |
|
HSM 105.2 |
|
|
Cutting
style |
Strip
cut |
Particle
cut |
Strip
cut |
Particle
cut |
| Cutting
size |
5.8/3.9/
1.9mm |
3.9
x 30/1.9 x 15 mm |
5.8/3.9/
1.9 mm |
3.9x30/
1,9x 15/0.78x 11 mm |
| Data
Security level din
32757-1 2/2/3 |
3/4 |
2/2/3 |
3/4/5 |
| Cutting
capacity* |
20-22/14-16/10-12
sheets |
10-12/8-10
sheets |
20-22/
14-16/ 10-12 sheets |
10-12/8-10/5-6
sheets |
| Cutting
speed |
80 mm/s |
90
mm/s |
80
mm/s |
90
mm/s |
| Loading
width |
240
mm |
240
mm |
240
mm |
240
mm |
| Power** |
270 W |
270
W |
270
W |
270
W |
| Voltage |
230V/50
Hz |
230V/50
Hz |
230V/50
Hz |
230V/50
Hz |
| Dimensions
in WxDxH |
in
mm375 x 250 x 550 mm |
375x250x550
mm |
375
x 250 x 550 mm |
375x250x550
mm |
| Weight |
11
kg |
11
kg |
11
kg |
11
kg |
| Capacity |
29L |
29L |
29L |
29L |
| •
per run IN A4, POg/m2 |
**
for max. number of sheets |
|
Technical
and |
optical
modifications reserved. |
